BW M5PID-XWQY-R-D-D-Y-N-00 GasAlertMicro 5 Series Multi-Gas

description:VOCs, % LEL, O2, H2S, CO - lithium polymer battery and pump - yellow housing...
BW M5PID-XWQY-R-D-D-Y-N-00 GasAlertMicro 5 Series Multi-Gas Detectors


BW GasAlertMicro 5 PID portable gas detector Rechargeable Version for combustible 0-100% LEL (Lower Explosive Limit) , 0-30.0% O2 (Oxygen), 0-500 ppm H2S (Hydrogen Sulfide), 0-999 ppm CO (Carbon Monoxide) and 0-1000 ppm VOCs (Volatile organic compounds). Lithium polymer battery and pump, yellow housing


Simultaneously monitor and display up to fi ve atmospheric hazards with the GasAlertMicro 5. Adaptable to a variety of applications, the GasAlertMicro 5 has an extensive selection of user-settable fi eld options and is available as either a standard toxic gas model, a PID model for the detection VOCs, or an IR model for CO2 detection. Use the passcode function to prevent unauthorized modifi cations of the instrument's settings. Compatible with BW's MicroDock II automatic test and calibration system, the GasAlertMicro 5 is unparalleled in its versatility, performance and overall value.

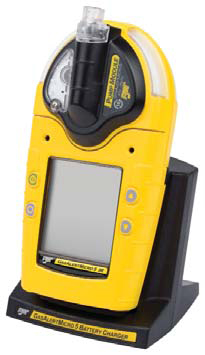

GasAlertMicro 5 with integrally       Optional rechargeable battery and slip-in cradle charger
attached pump

  • Measure up to five atmospheric hazards concurrently
  • Fully customizable to suit any application
  • Rapidly switch from diffusion mode, to the optional integrated pump in the field

Photoionization sensor available for volatile organic compounds (VOCs) detection.

Industrial Applications
Industry or Application Sources of VOC Hazards
Confined Space Entry Respiration and aerobic bacterial decomposition
Hazmat / Homeland Security Detect fl ammables not detected by LEL sensor (diesel, gasoline vapor, turpentine, etc)
Industrial Hygiene and Confined Space Wide number of potential hazards (benzene, diesel, ethanol, toluene, etc.) dependant on industry
Airlines (wing-tank entry) Jet fuel not detectable by LEL sensor, PID required
Landfills Decomposing organic matter, emission of chemical compounds
Oil and Gas By-products of refi ning processes
Chemical Plants Number of potential hazards dependant on product and process of manufacturing

Standard features of BW products
  • Continuous LCD shows real-time gas concentrations
  • Water-resistant
  • Automatic calibration procedure; compatible with BW MicroDock II automatic test and calibration station
  • Full function self-test of sensor, battery status, circuit integrity and audible/visual alarms on start up
  • Bright wide-angled visual alarm bars
  • Built-in concussion-proof boot
Additional GasAlertMicro 5 Features
  • Integral motorized pump option for remote sampling
  • Equipped with internal vibrating alarm for high noise areas
  • Two power options: AA alkaline or rechargeable hotswappable battery packs
  • Multi-language support in English, French, German, Spanish and Portuguese
Standard Package Contents
  • Detector complete with specified sensor(s), stainless steel alligator clip and concussion-proof housing
  • Rechargeable battery pack or alkaline pack with three AA batteries
  • Charging adaptor (with rechargeable battery option)
  • Screwdriver
  • Calibration/test adaptor and hose
  • Manual
  • Multi-language CD manual
Gas Measuring Range (ppm) Default Resolution (ppm) High Resolution (ppm)
O2 0-30.0% 0.1% N/A
CO 0-999 1.0 N/A
H2S 0-500 1.0 0.1
VOCs 0-1000 1 N/A
LEL 0-100% LEL
0-5% v/v
Auto zero Yes
Calibration Automatic
Backlight Standard Mode: low light (auto); alarm condition (auto); reactivation on demand
Alarm Only Mode: alarm condition (auto); reactivation on demand
Stealth Mode: backlight inactive; audible and visual alarms silenced
Sensor Plug-in, electrochemical cell (toxic and oxygen); catalytic (LEL); Photoionization detector (PID) with 10.6 eV lamp for volatile organic compounds (VOCs)
User field options Confidence beep, set STEL period, force calibration on start-up, enable / disable sensor, pass code protection, latching alarms, span level, passed calibration user-lockout option, "SAFE" display function, stealth mode, fast pump, oxygen auto-cal on start-up, alarm only backlight mode, combustible gas measurement (% LEL or % by volume methane), LCD language option, STEL calculation choice, TWA calculation choice, combustible correction factor options, user-settable calibration gas level, clock
ALARM INDICATORS Clearly advises alarm conditions with audible, visual, and vibrator alarms
Visual alarms Two flashing alarm bars visible from all angles
LCD indicates gas present and alarm levels encountered
Audible alarm Typically 95 dB at 1 ft. / 30 cm variable pulsed audible alarm
Vibrator alarm Pulses warning in gas alarm conditions, or for any status alarms
Status alarms Low battery, over range, multiple gas / pump and failed or missing sensor
ALARM LEVELS Instantaneous Low Alarm for all gases; Instantaneous High Alarm for all gases; TWA (time-weighted average) and STEL (short-term exposure limit) for toxics
LCD Continuous, alphanumeric gas readout and status display advises
Gas concentration Simultaneously and continuously displays gas concentration(s) for all sensors(in ppm, % LEL, or % v/v)
Alarm setpoints Displayed on activation and on demand
Calibration due date In days remaining (on start-up)
Peak (max)/STEL/TWA ppm or % Records exposures and displays on demand
Clock Real-time clock setting displayed on start-up
Full function self-test Sensor integrity, circuitry, battery and audible/visual alarms on activation
Battery Continuous
GENERAL SPECIFICATIONS Rugged, composite material; two-shot molded polymer case with integral anti-shock boot
Operating temperature -14 to +104°F / -10 to +40°C
Humidity 0 - 95% RH (non-condensing)
EMI/RFI Complies with EMC Directive 89/336/EEC
Protection Highly water resistant and dust proof housing
Battery Options 23 hours on three AA alkaline cells or 20 hours on rechargeable "hot-swappable" battery pack when equipped with oxygen, combustible, TwinTox (H2S/CO) and one additional toxic sensor
Size 5.7 x 2.9 x 1.5 in. / 14.5 x 7.4 x 3.8 cm
Weight 13.1 oz. / 370 g
WARRANTY Full 2-year warranty including all sensors (1 year NH3 sensor)
DATALOGGER OPTIONS User-downloadable datalogger
Data recorder All events and occurrences (calibration zero adjustment, calibration span adjustment, gas readings, TWA, STEL, alarm condition, failures detected by the microprocessor).
Sampling rate Factory set at 5-second intervals and user-settable from 1 to 127-second intervals
Storage 2 months of continuous data at 5 second intervals via 32 MB Flash MMC card (64 MB and 128 MB cards also available); when full, the wrap-around feature replaces oldest data with most recent data
Pump Optional; Sample from up to 66ft. / 20m

GasAlertMicro 5 PID
